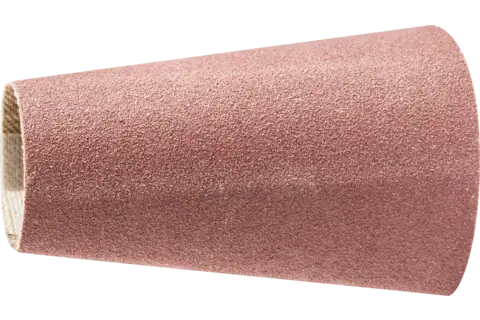

aluminium oxide abrasive spiral band GSB conical dia. 22-36x60mm A150 for general use

Matching accessories & spare parts

Grinding oil 410 Fe

Grinding oil 411 NE

Grinding oil 410/1 Fe

Grinding oil 410/5 Fe

Grinding oil 411/1 NE

Grinding oil 411/5 NE

Grinding oil 412 ALU

Grinding oil 412/1 ALU

Grinding oil 412/5 ALU

Technical information

aluminium oxide abrasive spiral band GSB conical dia. 22-36x60mm A150 for general use

Abrasive: Aluminium oxide A
Dia internal: 36 mm
Dia internal, small: 22 mm
Dia. external: 38 mm
Grit size: 150
Height: 60 mm
RPM, optimum: 10.000 - 15.900 RPM
Packaging unit: 100 pieces

Description

For general applications from coarse to fine grinding.

In ISO 2421, abrasive spiral bands are designated as "cylindrical sleeves".

GSB = bulk pack of abrasive spiral bands

Advantages

The abrasive spiral band is firmly held in place on the rubber drum holder as the holder expands during use.
Excellent tool life due to special manufacturing process – even under the most demanding operating conditions.
Maximum economic efficiency thanks to particularly high stock removal rate and aggressive abrasive quality.

Recommendations for use

To easily change the abrasive spiral bands, give them a slight clockwise twist and pull them up and off. When doing so, leave the rubber drum holder clamped in the tool drive.
To ensure the abrasive spiral band is securely attached, adhere to the minimum speed for the rubber drum holder.
Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.

Ordering notes

Please order rubber drum holder separately.

Safety notes

The maximum permitted peripheral speed is 30 m/s.
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
Do not allow abrasive spiral bands to protrude beyond the rubber drum holder.

Materials that can be worked: Aluminium; Annealed cast iron; Brass; Bronze; Cast steel; Cobalt-based alloys; Copper; Fibre-reinforced thermosetting plastics (GRP, CRP); Grey/nodular cast iron (GG/GJL, GGG/GJS); Hardened, heat-treated steels over 1.200 N/mm² (< 38 HRC); Stainless steel (INOX); Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Thermoplastics

Applications: Deburring; Leveling; Roughening; Sharpening; Step-by-step fine grinding; Surface work; Working on edges; Work on weld seams

Drive types: Flexible shaft drive; Straight grinder
