Abrasive spiral bands, conical

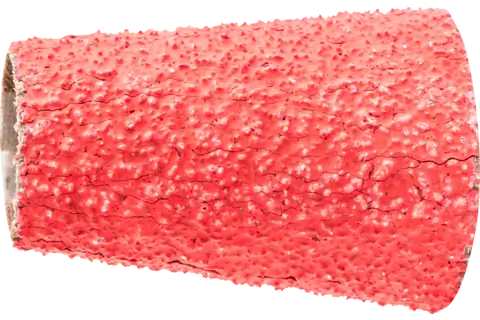

ceramic oxide grain abrasive spiral band GSB conical dia. 22-36x60mm CO-COOL36 for maximum stock removal on stainless steel

Item number: 42217190
EAN: 4007220950432
Login / Register Retailers-Search
Choose options
Abrasive
Dia internal
Grit size
Packaging unit
Technical information

ceramic oxide grain abrasive spiral band GSB conical dia. 22-36x60mm CO-COOL36 for maximum stock removal on stainless steel


Abrasive
CO-COOL
Dia internal
36 mm
Dia internal, small
22 mm
Dia. external [inch]
1.1 /2 Inch
Grit size
36
Height
60 mm
RPM, optimum, from
10000 RPM
RPM, optimum, to
15900 RPM
Packaging unit
100 pieces
Description

For aggressive grinding with maximum stock removal rate on hard and tough materials which do not conduct heat well. Consistently high performance due to self-sharpening ceramic oxide grain. Active grinding additives in the coating substantially improve the stock removal rate, prevent clogging and result in cooler grinding.

In ISO 2421, abrasive spiral bands are designated as "cylindrical sleeves".

GSB = bulk pack of abrasive spiral bands

Advantages
  • The abrasive spiral band is firmly held in place on the rubber drum holder as the holder expands during use.
  • Excellent tool life due to special manufacturing process – even under the most demanding operating conditions.
  • Maximum economic efficiency thanks to particularly high stock removal rate and aggressive abrasive quality.
  • The packaging size is ideally suited to industrial requirements.
Recommendations for use
  • To easily change the abrasive spiral bands, give them a slight clockwise twist and pull them up and off. When doing so, leave the rubber drum holder clamped in the tool drive.
  • To ensure the abrasive spiral band is securely attached, adhere to the minimum speed for the rubber drum holder.
  • Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.
Ordering notes
  • Please order rubber drum holder separately.
Safety notes
  • The maximum permitted peripheral speed is 30 m/s.
  • For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
  • Do not allow abrasive spiral bands to protrude beyond the rubber drum holder.
Materials that can be worked
Aluminium
Annealed cast iron
Bronze
Cobalt-based alloys
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Nickel-based alloys (e.g. Inconell and Hastelloy)
Stainless steel (INOX)
Titanium
Applications
Deburring
Levelling
Roughening
Sharpening
Step-by-step fine grinding
Surface work
Working on edges
Work on weld seams
Drive types
Flexible shaft drive
Straight grinder
