Bevel brushes crimped with thread

Bevel brush crimped KBU dia. 115x10 mm M14 stainless steel wire dia. 0.35 mm angle grinders

POS KBU 11510/M14 INOX 0,35

Item number:: 43316023
EAN:: 4007220806784

Bevel brush crimped KBU dia. 115x10 mm M14 stainless steel wire dia. 0.35 mm angle grinders 1

Bevel brush crimped KBU dia. 115x10 mm M14 stainless steel wire dia. 0.35 mm angle grinders 2

Bevel brush crimped KBU dia. 115x10 mm M14 stainless steel wire dia. 0.35 mm angle grinders 3

Bevel brush crimped KBU dia. 115x10 mm M14 stainless steel wire dia. 0.35 mm angle grinders 4

Technical data Change variant

Retailers-Search

Choose options

Dia. external

100 mm 115 mm 125 mm

Dia. filament material

0.35 mm

Filament material

Stainless steel wire (INOX) Steel wire (ST)

Packaging unit

1 5

Reset Filter

Technical information

Bevel brush crimped KBU dia. 115x10 mm M14 stainless steel wire dia. 0.35 mm angle grinders

Dia. external: 115 mm
Dia. filament material: 0.35 mm
Dia. thread: M14x2
Filament material: Stainless steel wire (INOX)
Length, filament: 30 mm
Max. RPM: 12500 RPM
Mounting system: Thread
Packaging: POS packaging
RPM, optimum: 5.000 - 12.500 RPM
Width: 10 mm
Packaging unit: 1 piece

Description

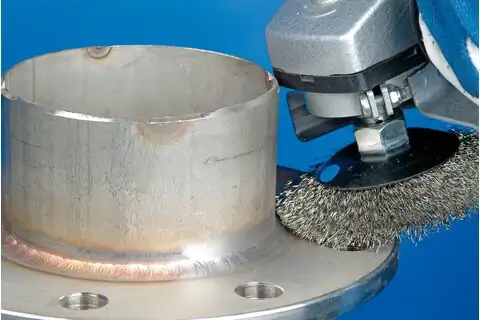

Excellent for medium-duty brushing such as deburring, cleaning and derusting.

In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD TOOLS uses wire quality 1.4310 (V2A) for all INOX brushes. Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life. All PFERD TOOLS brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A. The wire quality 1.4310 tends to become ferromagnetic in the case of cold working; i.e. it can be attracted using magnets. The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.

Stainless steel wire (INOX) withstands temperatures up to 450 °C.

Advantages

Optimal access to hard-to-reach areas such as inner edges, grooves and keyways.
Highly flexible, enabling optimal adjustment to the workpiece contour.
Suitable for use on angle grinders up to 80 m/s.
Very good corrosion resistance.
Creates fine surfaces.
The brush is degreased and does not leave any oil residue on the workpiece.

Recommendations for use

Please observe the recommended rotational speeds.
For optimum results, use on speed-adjustable angle grinders.

Materials that can be worked: Aluminium; Bronze; Cobalt-based alloys; Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Nickel or titanium-based superalloys; Other non-ferrous metals; Soft titanium alloys (tensile strength 500 N/mm²); Stainless steel (INOX); Titanium; Titanium alloys

Applications: Cleaning; Deburring; Derusting; Paint stripping; Removing heat discolouration; Removing oxide layers; Roughening

Drive types: Angle grinder; Cordless angle grinder; Drive spindle
