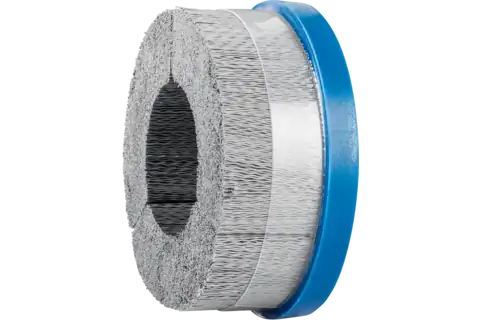

COMPOSITE composite disc brush DBUR dia. 125x22.2 mm hole SiC filament dia. 0.55 mm grit 320 stationary

Item number: 79184137
EAN: 4007220808818
Login / Register Retailers-Search
Choose options
Dia. external
Dia. filament material
Filament material
Grit size
Technical information

COMPOSITE composite disc brush DBUR dia. 125x22.2 mm hole SiC filament dia. 0.55 mm grit 320 stationary


Dia. external
125 mm
Dia. external [inch]
5 Inch
Dia. filament material
0.55 mm
Dia. hole
22.2 mm
Filament material
Silicon carbide (SiC)
Grit size
320
Length, filament
38 mm
Length, filament to ring
19 mm
Mounting system
Centre hole
RPM, max.
3000 RPM
RPM, optimum, from
1200 RPM
RPM, optimum, to
2000 RPM
Packaging unit
1 piece
Description

Particularly aggressive brush with bridle. Particularly suitable for deburring and work on surfaces on stationary machines.

Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable clamping options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and reproducible results are achieved with short cycle times. For efficient use, numerous application parameters such as the processing time and feed rate must be coordinated with each other and a suitable brush must be selected.

Brushes with silicon carbide (SiC) are particularly well suited to deburring work and surface improvement.

Plastic filament withstands temperatures up to 220 °C.

Advantages
  • Long tool life and aggressive brushing effect due to a very high filament density.
  • Extremely smooth operation due to even distribution of the filament material.
  • The bridle prevents the wires spreading out sideways.
  • If the filament has worn away down to the bridle, it can be removed from the bridle for further use. This does not affect the brushing behaviour.
  • The bridle enables the spreading out and flexibility of the brush filament to be controlled.
  • Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Recommendations for use
  • Please observe the recommended rotational speeds.
  • Remove the bridle once the filament is worn down. Then the rest of the filament can be used.
  • Remove the bridle before starting work if you would like to achieve a large spreading diameter or access hard-to-reach areas.
  • Use coolant for applications where large amounts of heat are produced.
Ordering notes
  • This composite disc brush is supplied with two drive pin holes with a 6.5 mm diameter. Pitch circle diameter 31 mm.
Materials that can be worked
Aluminium
Cast iron
Other non-ferrous metals
Stainless steel (INOX)
Steel, cast steel
Thermoplastics
Thermosetting plastics
Wood
Applications
Cleaning
Deburring
Roughening
Structuring (matt finishing, brush matting and satin finishing)
Drive types
Robot
Stationary machines
Tool machine
