TC burrs - INOX cut

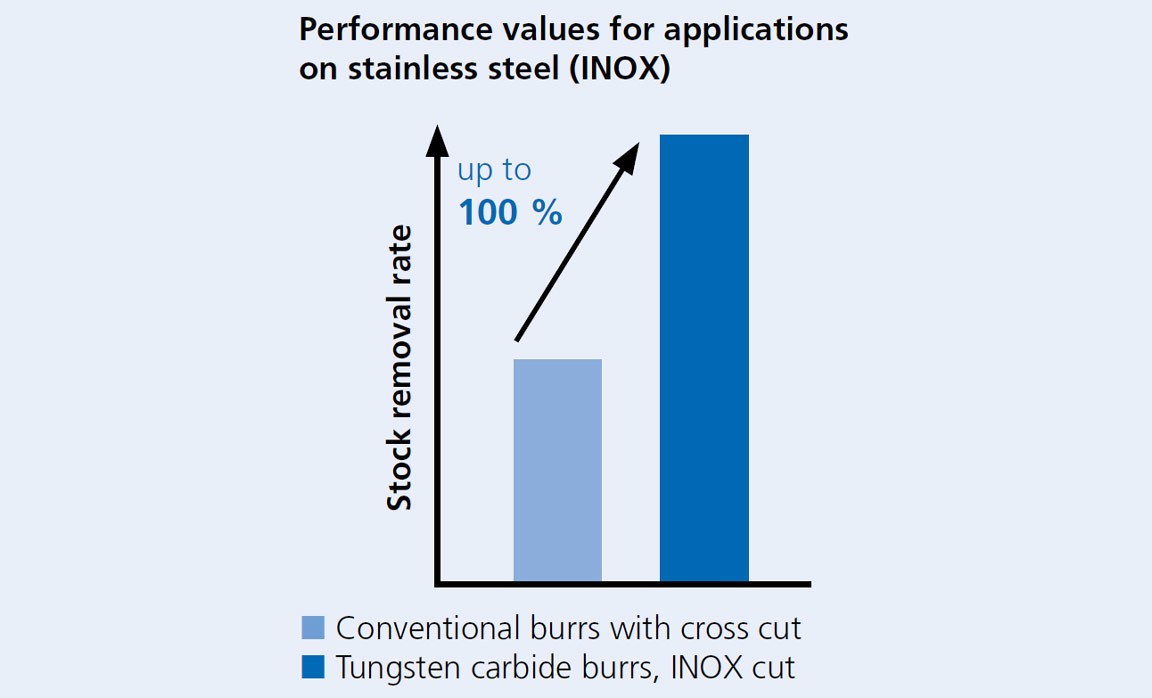

In addition, compared to conventional cross-cut burrs, the INOX cut features a 100 % higher stock removal rate when used on stainless steel.

Advantages:

  • Outstanding stock removal rate and tool life due to the innovative tooth geometry.
  • Achieves high surface qualities through optimum chip formation.
  • Prevents heat discolouration in the material due to the reduced heat generation.
  • Reduced wear on the tool drive due to impact-free work without chatter marks, thanks to the high concentricity.

Materials that can be worked:

  • Stainless steel (INOX)
  • Soft titanium alloys (tensile strength < 500 N/mm²)

Applications:

  • Milling out
  • Levelling
  • Deburring
  • Cutting out holes
  • Surface work
  • Work on weld seams

Matching tool drives:

  • Flexible shaft drive
  • Straight grinder
  • Robot
  • Machine tools

Recommendations for use:

  • If possible, use the tools on powerful drives with elastically mounted spindles to avoid vibration.
  • For the cost-effective use of burrs, work with higher rotational/cutting speeds.
  • Power recommendation for tool drives:
    • Shank diameter of 3 mm: 75 to 300 watts
    • Shank diameter of 6 mm: from 300 watts
  • Please observe the rotational speed recommendations. The RPMs shown in the product tables on the product pages are for work on stainless steel (INOX) only.

Safety note:

The very high stock removal rate can cause discolouration on the shank. This does not constitute a safety risk.



TC burrs - INOX cut

Here you can find additional useful information.

Download brochure



Cutting speeds, rotational speeds and cuts

Download brochure
