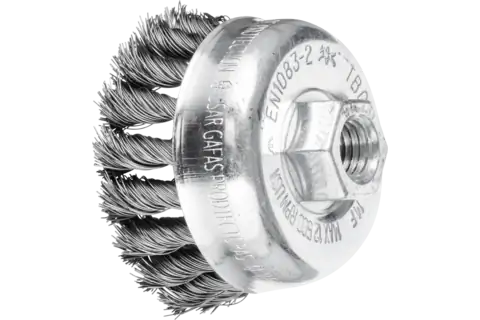

Cup brush knotted TBG dia. 65 mm M14 steel wire dia. 0.35 mm angle grinders (1)

Technical information

Cup brush knotted TBG dia. 65 mm M14 steel wire dia. 0.35 mm angle grinders (1)

Dia. external: 65 mm
Dia. filament material: 0.35 mm
Dia. thread: M14x2
Filament material: Steel wire (ST)
Grit size: No information
Length, filament: 22 mm
Max. RPM: 12500 RPM
Mounting system: Thread
Number, knots: 18 pcs.

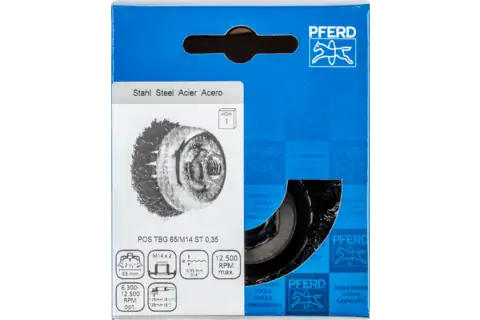

Packaging: POS packaging
RPM, optimum, from: 6300 RPM
RPM, optimum, to: 12500 RPM
Packaging unit: 1 piece

Description

Aggressive brush. Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter.

Steel wire is the most common filament material. Brushes with steel wire as the filament material are especially well-suited to work on surfaces and deburring. PFERD special wire has high tensile strength and bending fatigue strength. This ensures that the wire wears down in the optimal way, as well as a long tool life, even in extreme brushing applications.

Steel wire withstands temperatures up to 300 Â°C.

Advantages

Aggressive brushing effect due to the very stiff wire knots.
Long tool life through use of PFERD special wire.

Recommendations for use

Please observe the recommended rotational speeds.
For optimum results, use on powerful angle grinders.

Materials that can be worked: Cast iron; Cast steel; Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC)

Applications: Cleaning; Deburring; Derusting; Descaling; Paint stripping; Removing oxide layers; Root seam processing; Work on fillet welds; Work on weld seams

Drive types: Angle grinder; Drive spindle
