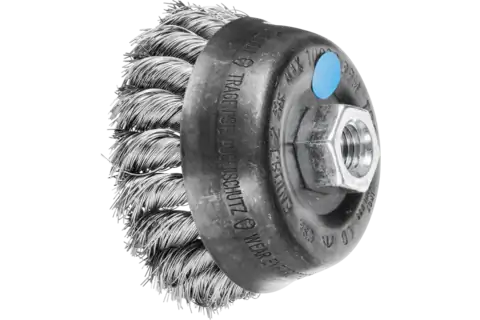

Cup brush knotted TBG dia. 80 mm M14 stainless steel wire dia. 0.35 mm angle grinders

Technical information

Cup brush knotted TBG dia. 80 mm M14 stainless steel wire dia. 0.35 mm angle grinders

Dia. external: 80 mm
Dia. filament material: 0.35 mm
Dia. thread: M14x2
Filament material: Stainless steel wire (INOX)
Grit size: No information
Length, filament: 20 mm
Max. RPM: 10000 RPM
Mounting system: Thread
Number, knots: 20 pcs.
PFERD TOOLS type: TBG 80/M14 INOX 0,35
RPM, optimum: 4.000 - 10.000 RPM
Packaging unit: 5 pieces

Description

Aggressive brush. Excellent for heavy-duty brushing such as deburring, cleaning, derusting and descaling and removal of spatter.

In order to fulfil the particular requirements for working with stainless steel (INOX), PFERD TOOLS uses wire quality 1.4310 (V2A) for all INOX brushes. Practical experience from industry has shown that this offers very good corrosion resistance with an optimum tool life. All PFERD TOOLS brushes with INOX filaments are colour-coded in blue and are suitable for use on all stainless steels (INOX), such as V4A. The wire quality 1.4310 tends to become ferromagnetic in the case of cold working; i.e. it can be attracted using magnets. The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion.

Stainless steel wire (INOX) withstands temperatures up to 450 °C.

Advantages

Aggressive brushing effect due to the very stiff wire knots.
Very good corrosion resistance.
The brush is degreased and does not leave any oil residue on the workpiece.

Recommendations for use

Please observe the recommended rotational speeds.
For optimum results, use on powerful angle grinders.

Materials that can be worked: Aluminium; Bronze; Cobalt-based alloys; Hard non-ferrous metal; High-temperature-resistant materials; Nickel-based alloys (e.g. Inconell and Hastelloy); Nickel or titanium-based superalloys; Other non-ferrous metals; Soft titanium alloys (tensile strength 500 N/mm²); Stainless steel (INOX); Titanium; Titanium alloys

Applications: Cleaning; Deburring; Derusting; Descaling; Paint stripping; Removing heat discolouration; Removing oxide layers; Root seam processing; Work on fillet welds; Work on weld seams

Drive types: Angle grinder; Drive spindle

Downloads

Threaded cup brushes, knotted

Cup brush knotted TBG dia. 80 mm M14 stainless steel wire dia. 0.35 mm angle grinders

TBG 80/M14 INOX 0,35
