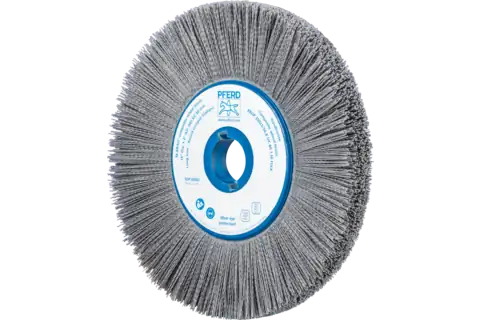

COMPOSITE FLEX wheel brush RBUP dia. 350x25x50.8 mm hole SiC filament dia. 1.10 mm grit 80 stationary

Technical information

COMPOSITE FLEX wheel brush RBUP dia. 350x25x50.8 mm hole SiC filament dia. 1.10 mm grit 80 stationary

Brush keyways: 12.7 x 6.4 mm
Dia. external: 350 mm
Dia. filament material: 1.1 mm
Dia. hole: 50.8 mm
Filament material: Silicon carbide (SiC)
Grit size: 80
Length, filament: 89 mm
Max. RPM: 1800 RPM
Mounting system: Centre hole
Packaging: Industrial packaging
RPM, optimum: 500 - 800 RPM
Width: 25 mm
Packaging unit: 1 piece

Description

Particularly flexible brush. Its plastic filament makes this product particularly suitable for deburring complicated components such as cylinder heads or gear toothing. Developed specially for industrial use.

Composite brushes from PFERD TOOLS have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable clamping options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and reproducible results are achieved with short cycle times. For efficient use, numerous application parameters such as the processing time and feed rate must be coordinated with each other and a suitable brush must be selected.

Brushes with silicon carbide (SiC) are particularly well suited to deburring work and surface improvement.

Plastic filament withstands temperatures up to 220 °C.

Advantages

Long tool life and aggressive brushing effect due to a very high filament density.
Extremely smooth operation due to even distribution of the filament material.
Highly flexible, enabling optimal adjustment to the workpiece contour and less heat build-up.
Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.

Recommendations for use

Please observe the recommended rotational speeds.
Use coolant for applications where large amounts of heat are produced.

Materials that can be worked: Aluminium; Bronze; Cast iron; Cast steel; Cobalt-based alloys; Other non-ferrous metals; Stainless steel (INOX); Steel, cast steel; Steel materials with a hardness > 54 HRC; Steels up to 1,200 N/mm² (< 38 HRC); Thermoplastics; Thermosetting plastics; Wood

Applications: Cleaning; Deburring; Roughening; Structuring (matt finishing, brush matting and satin finishing)

Drive types: Automated centres; Robot; Tool machine

PFERD TOOLS VALUE

PFERD TOOLS EFFICIENCY

recommends composite brushes to achieve maximum stock removal as quickly as possible.

PFERD TOOLS ERGONOMICS

recommends composite brushes to sustainably reduce the vibrations produced during use.
